Shandong Huaang Engineering Equipment Co.,Ltd is one of the most professional manufacturers and suppliers of 630 grinder in China. Welcome to buy discount products made in China here and get quotation from our factory. Good service and reasonable price are available.

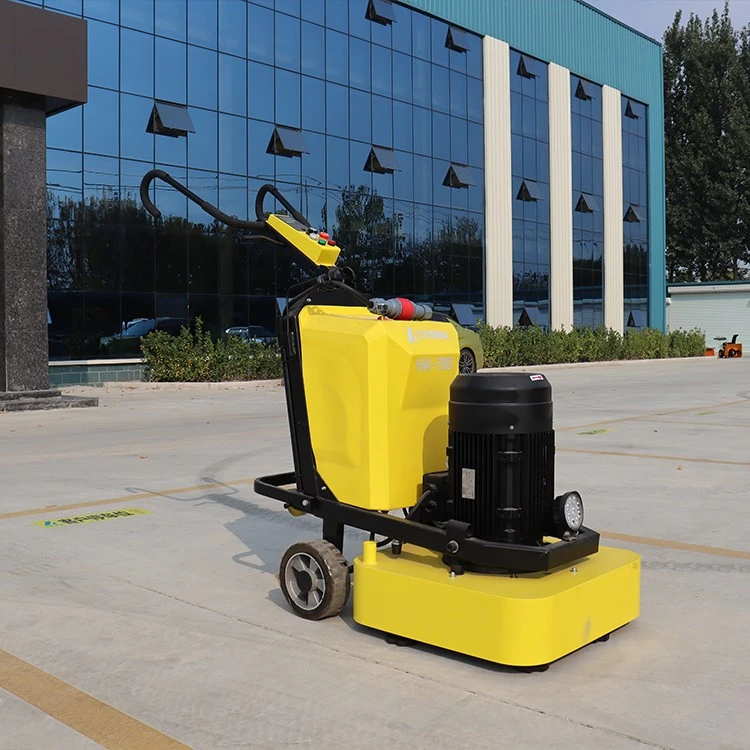

HA-700 Grinder Features and Benefits

- The machine operates stably and reliably, saves labor and labor, and will not damage the project quality;
- Suitable for all kinds of natural and artificial stone floors; Leveling, polishing, slag removal and cleaning of epoxy floor, cement floor, epoxy terrazzo, epoxy emery floor, curing agent floor and PVC floor;
- lmported motor with strong suction and low failure rate;
- The external vacuum cleaner can be connected, and the grinding and dust suction can be carried out simultaneously to achieve dust-free construction;
- Wet and dry, the grinder is equipped with water tank, which can be used for wet grinding;
- The low center of gravity design greatly improves the operation comfort and stability during high load construction;
- The machine is small and flexible, so it is not limited by the size of the construction site. There is no dead angle between the fuselage and the wall during construction.
Specifications
|
Motor power |
15KW-20P |
|
Motor brand |
Brucker Motor, Germany |
|
Inverter power |
22KW |
|
Inverter brand |
Zhongchen 6400S |
|
Voltage |
380V |
|
Electric current |
16A |
|
frequency |
50HZ |
|
Water tank capacity |
35L |
|
Grinding width |
700*700mm |
|
Machine weight |
360kg |
|
Grinding disc speed |
0-1500rpm |
|
Transmission mode |
Gear rotation |
|
Lighting |
LED light |
|
remarks |
External vacuum cleaner |
Advanced Trowel Technologies
- Floating Trowel Pans: The development of floating trowel pans allows for better finishing quality and efficiency. These pans can adapt to various surface conditions and provide a finer finish, reducing the number of passes needed.
- Interchangeable Blade Systems: Featuring quick-change blade systems allows operators to swap trowel blades based on the specific finishing requirements, be it for a rough or polished surface.
Safety Enhancements
- Enhanced Stability Features: Some models are equipped with automatic leveling systems that help stabilize the machine on uneven surfaces, reducing the risk of tipping.
- Proximity Sensors and Alarms: Innovative safety features like proximity sensors detect nearby objects or personnel, providing alerts to operators to prevent accidents.
Power and Performance Improvements
- Variable Speed Control: Ride-on trowels now often come with variable speed control for both the troweling blades and the machine movement, allowing for precise finishing depending on the concrete's condition.
- Hydraulic Power: Innovations in hydraulic systems have led to improved responsiveness and efficiency, enabling better control of troweling operations.
Maintenance and Serviceability
- Modular Designs: New designs emphasize modularity, allowing for easier access to components for routine maintenance and repairs. This reduces downtime and makes servicing the machines more efficient.
- Smart Diagnostics: Advanced diagnostics features help technicians quickly identify problems and facilitate predictive maintenance, ensuring the machine is always in optimal working condition.
Environmental Considerations
- Low-Emission Options: Technological advancements have led to the development of low-emission engines that comply with environmental regulations while still providing the power needed for effective troweling.
- Electric Ride-On Trowels: The rise of electric-powered ride-on trowels is a significant innovation, providing an eco-friendly alternative that reduces noise and air pollution on job sites.
