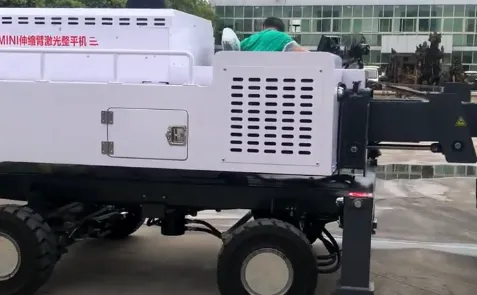

HA200-4MINI Compact Laser Screed: A Complete Guide to Startup and Control Panel Setup for Beginners

Main Power Switch and Ignition: Before starting, pull the machine's main power switch outward, then turn the ignition key to start the engine.

Safety Lock Protection: It is imperative to verify the status of the machine's safety lock (clearly identifying the "Open" and "Closed" positions); this serves as the primary line of defense for ensuring the safety of both personnel and equipment at the construction site.

The HA200-4MINI is equipped with a flexible outrigger control system designed for the initial positioning and leveling of the machine:

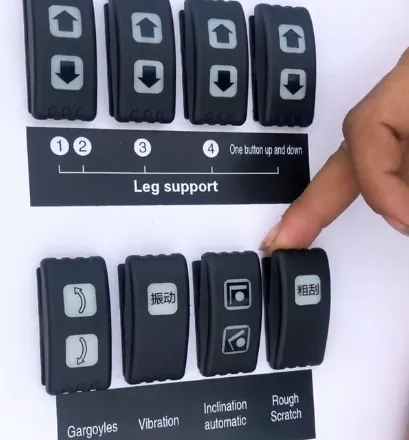

Manual Mode: Dedicated buttons allow for the independent raising and lowering of "Outriggers 1 & 2," as well as the individual fine-tuning of "Outriggers 3 & 4."

Efficient Mode:** Features "One-Touch Raise" and "One-Touch Lower" functions, enabling simultaneous control of all four outriggers to quickly establish a stable platform for construction preparation.

Spreading System:** The control panel also integrates buttons for "Auger (Screw Conveyor) Forward/Reverse" rotation, allowing for spreading adjustments based on the specific accumulation of concrete at the site.

The machine's movement and screed head control functions are highly integrated into a single control lever:

Action Response:** Pushing the lever forward drives the machine forward, while pulling it backward initiates the screeding (leveling) operation. Pushing the lever to the left or right executes "Left Rotation" and "Right Rotation" maneuvers, enabling the machine to pivot 360 degrees in place.

Shortcut Buttons:The control lever features integrated shortcut buttons for "One-Touch Raise" and "One-Touch Lower" of the hydraulic cylinders, as well as buttons for "Left Turn" and "Right Turn." These features significantly reduce operator fatigue during prolonged periods of operation.
