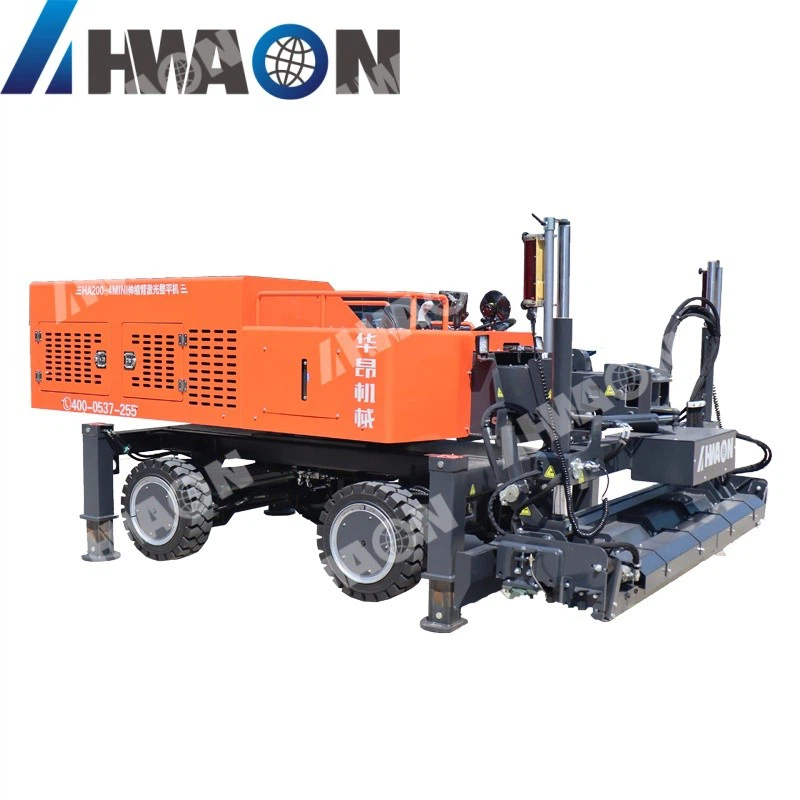

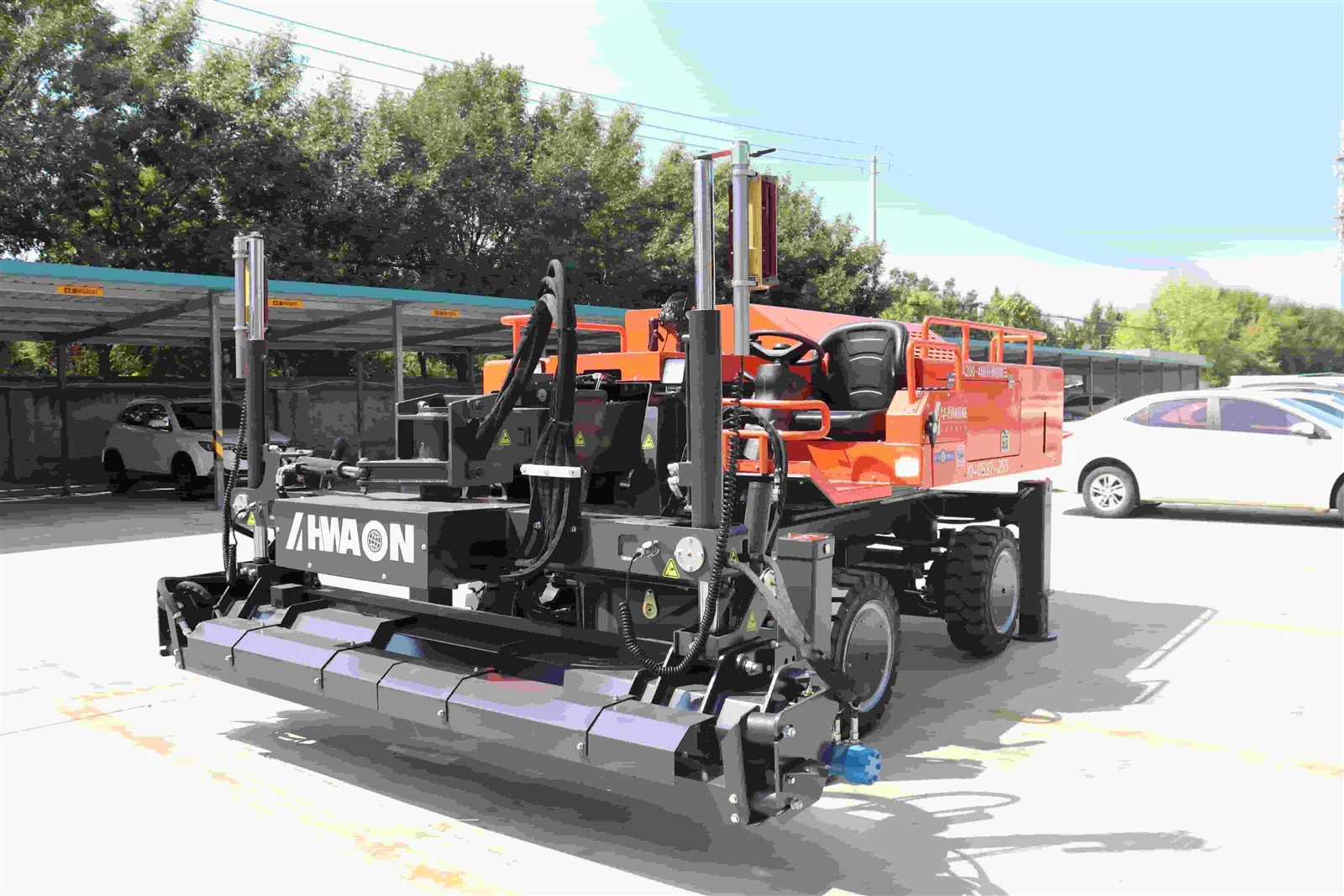

MINI-size telescopic boom laser screed machine
This model can rotate 360 degrees and features a 5.5-meter telescopic boom, allowing the machine to cover an extremely large area from a fixed position.
Individually touch-sensitive outriggers allow for individual control, providing strong stability and traction.
The machine is equipped with a state-of-the-art laser system and a fully hydraulic control system, receiving a horizontal reference signal from a fixed laser emitter
Core Structure
cassis (Drive): Usually equipped with heavy-duty tracked or large-wheel drive, providing strong stability and traction.
Telescopic Arm (Boom):
A hydraulically controlled extendable lattice structure, which is the core of the machine. The arm length is 5.5 meters, allowing the machine to cover a large area from a fixed position.
Leveling Head (Workhead): Installed at the end of the boom, it integrates:
Laser Receiver: Receives horizontal reference signals emitted by a fixed laser transmitter.
Scraper (Blade): Used for precise adjustment of concrete elevation.
High-Frequency Vibrating Motor: Deeply compacts and consolidates the concrete.
Screw Distributor (Optional): Used for evenly spreading concrete.
Hot Tags: mini-size telescopic boom laser screed machine, China mini-size telescopic boom laser screed machine manufacturers, factory, Beam Concrete Laser Screed Machine, Big Project Concrete Laser Screed Machine, Laser Concrete Screeding Machine, Pavement Concrete Laser Screed Machine, Paving Concrete Laser Screed Machine, Telescopic Boom Concrete Laser Screed Machine
Product Specifications
| Drive | Hydraulic 4WD |
| Steering mode | Front wheel, four-wheel, crab type |
| Wheel | Anti-skid solid tire |
| Outrigger | Self-leveling of four legs |
| Travel speed | 0-3km/h |
| Working speed | 20m/min |
| Seat position | Left front |
|
Model |
Changchai engine |
|
Type |
Diesel engine, 4-stroke water cooling, four-cylinder |
|
Power |
36KW/50HP |
|
Fuel capacity |
100L |
|
Fuel consumption |
4L/h |
| Texture of material | magnesium alloy |
| Leveling width | 2780mm |
| Paving method | Dragon-twisting paving |
| Jilong power | Hydraulic motor |
| Exciting force | 3000N |
| Vibration frequency | 60Hz |
| Swing angle | ±45° |
| Leveling control of leveling head | Proportional control |
| Flathead height | 300mm |
| control accuracy | ±1.5mm |
| Length | 5500mm |
| Control mode | Handle control, stepless speed change |
| Transport dimensions | 6750x2250x1950mm |
| Weight | 4500kg |
Advantage:
Elevation Control: The laser receiver continuously acquires the reference height and feeds it back to the onboard computer.
Real-time Adjustment: The hydraulic system precisely adjusts the blade height in real-time according to the computer's instructions, ensuring that the leveled concrete surface matches the set laser reference plane height.
Vibration Compaction: While leveling, the high-frequency vibration motor built into the machine head vigorously compacts the concrete, ensuring density and improving strength.
Large-span Operations: The machine can cover a large area with minimal movement and repositioning through its extendable arm, achieving continuous and efficient operation.
Product project cases and application scenarios
